1. Train a classifier using the CIFAR10 dataset.
1.1 Importing Packages
%matplotlib inlineimport torch
import torchvision
import torchvision.transforms as transformsThe output of the torchvision dataset is PILImage images in the range [0, 1]. These are then converted to Tensors with a normalized range of [-1, 1].
1.2 Loading Data
!wget https://model-community-picture.obs.cn-north-4.myhuaweicloud.com/ascend-zone/notebook_datasets/0bae26b00e9711f095dcfa163edcddae/data.zip
!unzip data.zip
Load and preprocess the CIFAR-10 dataset, create data loaders for training and testing, and define the class names in the dataset.
transform = transforms.Compose(
[transforms.ToTensor(),
transforms.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5))])
batch_size = 4
trainset = torchvision.datasets.CIFAR10(root='./data', train=True,
download=True, transform=transform)
trainloader = torch.utils.data.DataLoader(trainset, batch_size=batch_size,
shuffle=True, num_workers=2)
testset = torchvision.datasets.CIFAR10(root='./data', train=False,
download=True, transform=transform)
testloader = torch.utils.data.DataLoader(testset, batch_size=batch_size,
shuffle=False, num_workers=2)
classes = ('plane', 'car', 'bird', 'cat',
'deer', 'dog', 'frog', 'horse', 'ship', 'truck')

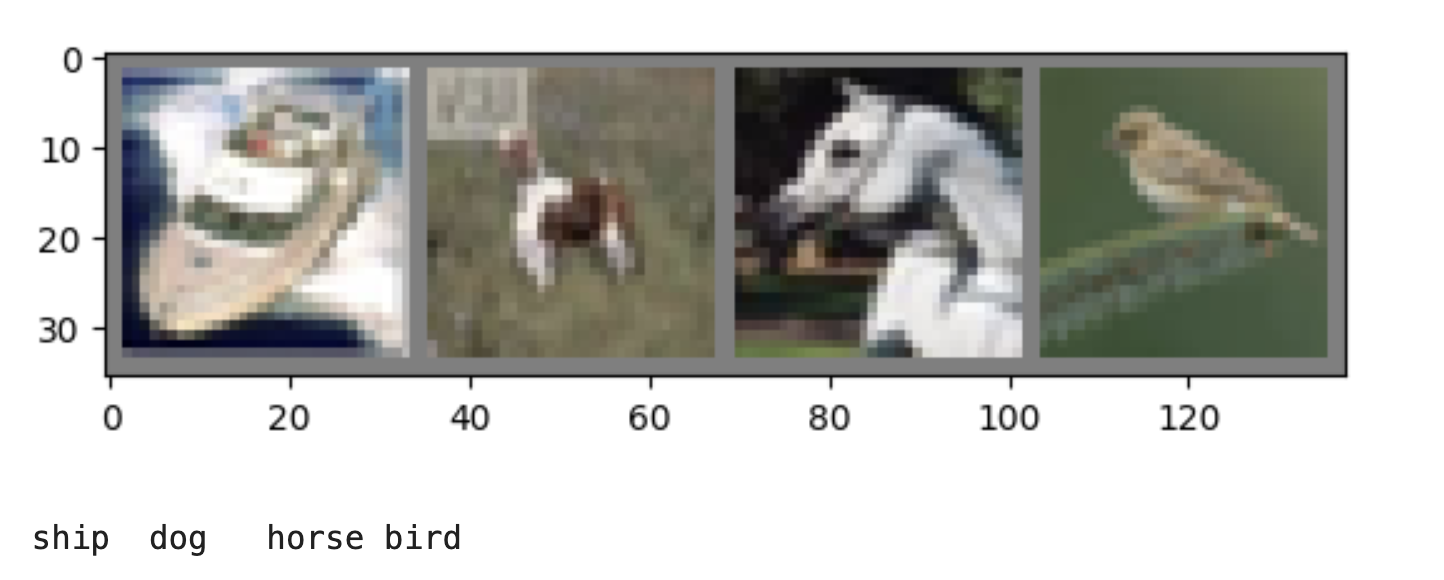

Showing some training images
import matplotlib.pyplot as plt
import numpy as np
import torchvision
# Display image function
def imshow(img):
img = img / 2 + 0.5 # unnormalize
npimg = img.numpy()
plt.imshow(np.transpose(npimg, (1, 2, 0)))
plt.show()
# Get some random training images
dataiter = iter(trainloader)
images, labels = next(dataiter)
# Display images
imshow(torchvision.utils.make_grid(images))
# Print categories
print(' '.join(f'{classes[labels[j]]:5s}' for j in range(len(labels))))
1.3 Defining a Convolutional Neural Network
import torch.nn as nn
import torch_npu
import torch.nn.functional as F
device = torch.device("npu:0" if torch.npu.is_available() else "cpu")
torch_npu.npu.set_device(device)
class Net(nn.Module):
def __init__(self):
super().__init__()
self.conv1 = nn.Conv2d(3, 6, 5)
self.pool = nn.MaxPool2d(2, 2)
self.conv2 = nn.Conv2d(6, 16, 5)
self.fc1 = nn.Linear(16 * 5 * 5, 120)
self.fc2 = nn.Linear(120, 84)
self.fc3 = nn.Linear(84, 10)
def forward(self, x):
x = self.pool(F.relu(self.conv1(x)))
x = self.pool(F.relu(self.conv2(x)))
x = torch.flatten(x, 1) # flatten all dimensions except batch
x = F.relu(self.fc1(x))
x = F.relu(self.fc2(x))
x = self.fc3(x)
return x
net = Net().to(device)
1.4 Define the loss function and optimizer
Use Classification Cross-Entropy loss and SGD with momentum.
import torch.optim as optim
criterion = nn.CrossEntropyLoss()
optimizer = optim.SGD(net.parameters(), lr=0.001, momentum=0.9)1.5 Training the Network
Iterate through the data iterator, feed the input into the network, and optimize it.
for epoch in range(2): # Iterate through the dataset multiple times
running_loss = 0.0
for i, data in enumerate(trainloader, 0):
# Get the input; the data is a list of [inputs, labels]
inputs, labels = data[0].to(device), data[1].to(device)
# Zero the parameter gradients
optimizer.zero_grad()
# forward + backward + optimize
outputs = net(inputs)
loss = criterion(outputs, labels)
loss.backward()
optimizer.step()
# print statistics
running_loss += loss.item()
if i % 2000 == 1999: # Print every 2000 mini-batch print
(f'[{epoch + 1}, {i + 1:5d}] loss: {running_loss / 2000:.3f}')
running_loss = 0.0
print('Finished Training')
out：
[1, 2000] loss: 2.181
[1, 4000] loss: 1.835
[1, 6000] loss: 1.658
[1, 8000] loss: 1.576
[1, 10000] loss: 1.518
[1, 12000] loss: 1.481
[2, 2000] loss: 1.396
[2, 4000] loss: 1.375
[2, 6000] loss: 1.357
[2, 8000] loss: 1.344
[2, 10000] loss: 1.313
[2, 12000] loss: 1.282
Finished TrainingSave the trained model:
PATH = './cifar_net.pth'
torch.save(net.state_dict(), PATH)1.6 Test the network on test data
We’ve just trained the network twice on the training dataset. We need to check if the network has learned anything. This
is done by predicting the class label of the neural network’s output and checking against the true values. If the prediction is correct, add the sample to the correct prediction list.

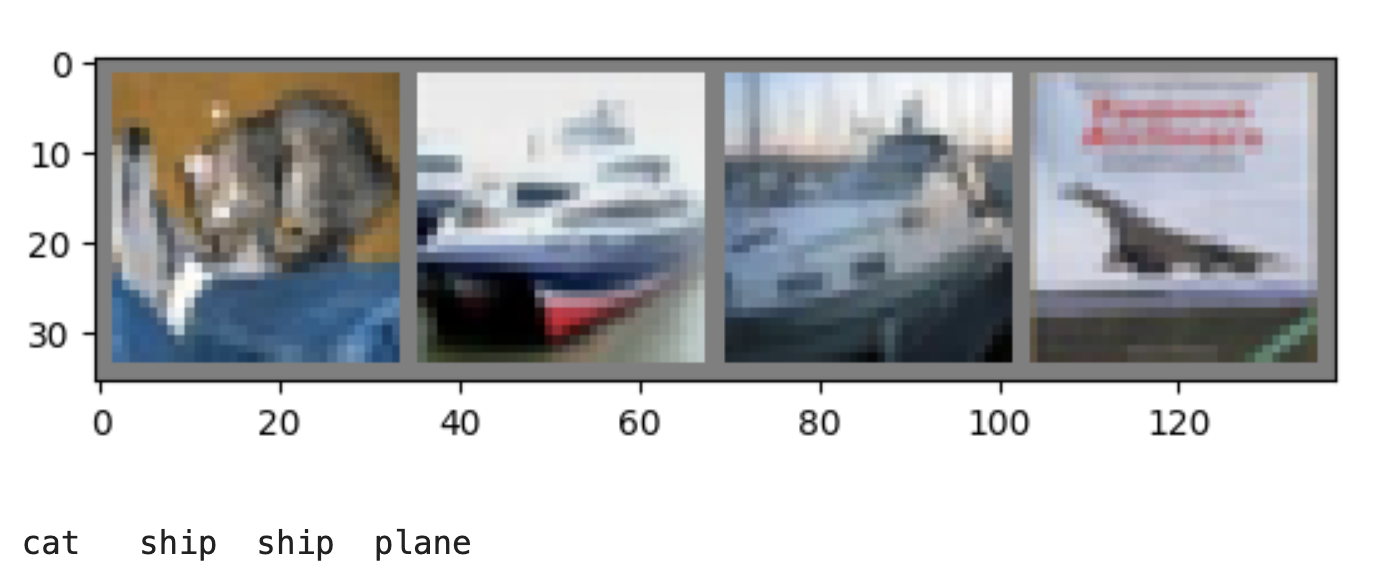

Show a portion of the images from the test set.
dataiter = iter(testloader)
images, labels = next(dataiter)
imshow(torchvision.utils.make_grid(images))
print(' '.join(f'{classes[labels[j]]:5s}' for j in range(len(labels))))
Reload the saved model (Note: Saving and reloading the model is not necessary here; it’s just to demonstrate how to do it):
net = Net().to(device)
net.load_state_dict(torch.load(PATH))labels = labels.to(device)
images = images.to(device)
outputs = net(images)View the prediction results:
_, predicted = torch.max(outputs, 1)
print('Predicted: ', ' '.join(f'{classes[predicted[j]]:5s}'
for j in range(4)))Out:
Predicted: frog ship car shipTest how the network performs on the entire dataset.
# Test model
correct = 0
total = 0
# Since there is no training, there is no need to calculate the gradient of the output
with torch.no_grad():
for data in testloader:
images, labels = data
# Move the data to the NPU device
labels = labels.to(device)
images = images.to(device)
# Calculate the output by inputting the images into the network
outputs = net(images)
# The predicted class is the highest-scoring class
_, predicted = torch.max(outputs.data, 1)
total += labels.size(0)
correct += (predicted == labels).sum().item()
print(f'Accuracy of the network on the 10000 test images: {100 * correct // total} %')
Out:
Accuracy of the network on the 10000 test images: 55 %This seems much better than randomness, which has a 10% accuracy rate (randomly selecting a category from 10 categories). It appears the network has learned something.
Which classes perform well, and which classes perform poorly?
# Prepare to calculate predictions for each class
correct_pred = {classname: 0 for classname in classes}
total_pred = {classname: 0 for classname in classes}
# No gradient needed
with torch.no_grad():
for data in testloader:
images, labels = data
images = images.to(device)
outputs = net(images)
_, predictions = torch.max(outputs, 1)
# Get the correct predictions for each class
for label, prediction in zip(labels, predictions):
if label == prediction:
correct_pred[classes[label]] += 1
total_pred[classes[label]] += 1
# Print the accuracy for each class
for classname, correct_count in correct_pred.items():
accuracy = 100 * float(correct_count) / total_pred[classname]
print(f'Accuracy for class: {classname:5s} is {accuracy:.1f} %')
out:
Accuracy for class: plane is 52.9 %
Accuracy for class: car is 68.2 %
Accuracy for class: bird is 32.2 %
Accuracy for class: cat is 44.3 %
Accuracy for class: deer is 48.4 %
Accuracy for class: dog is 41.3 %
Accuracy for class: frog is 69.6 %
Accuracy for class: horse is 55.1 %
Accuracy for class: ship is 69.1 %
Accuracy for class: truck is 69.5 %
